LV-932/LV-918S
| Model no.: | LV-932 | LV-918S |
| Product name: | Single 12 inch Line array | Single 18 inch subwoofer |
| Rated power: | 600W | 800W |
| Components: | LF1*12″ 190 mm 3”vc/HF3*1.5″ vc neo | LF 18”*1 |
| Sensitivity: | 110 dB | 95dB |
| Max SPL: | 132 dB | 130dB |
| Impedance: | 8 ohm | 8 ohm |
| Frequency range: | 57Hz-20KHz | 34Hz-220Hz |
| Cabinet material: | Plywood/Polyurea painting | Plywood/Polyurea painting |
| Dimension: | 349*597*381mm | 508*597*749mm |
| Color: | Black | Black |
| Gross weight/net weight(kg): | 25/22 | 51/49 |

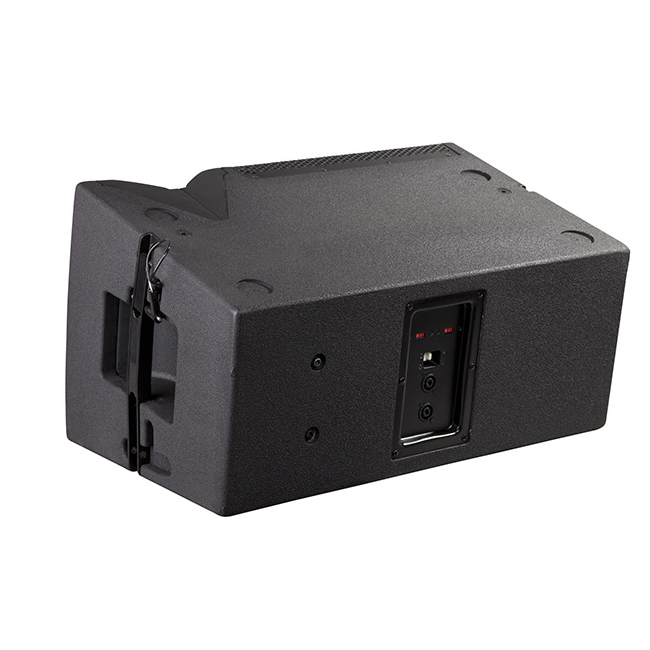

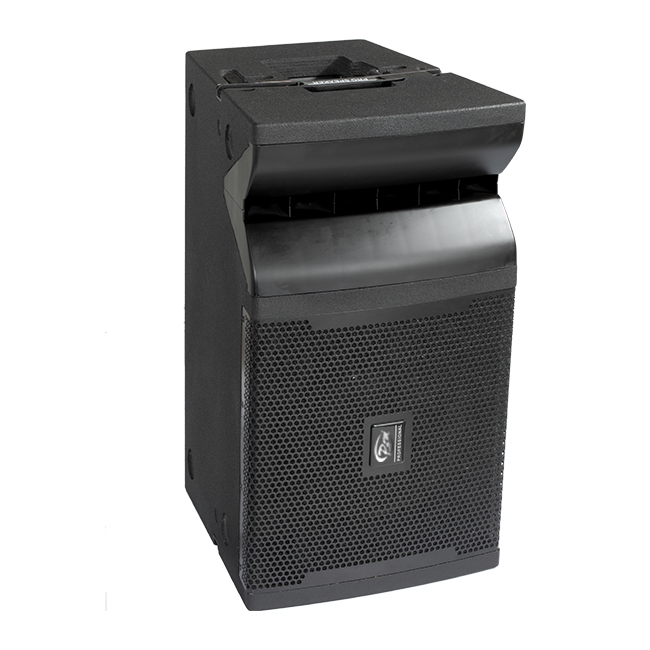

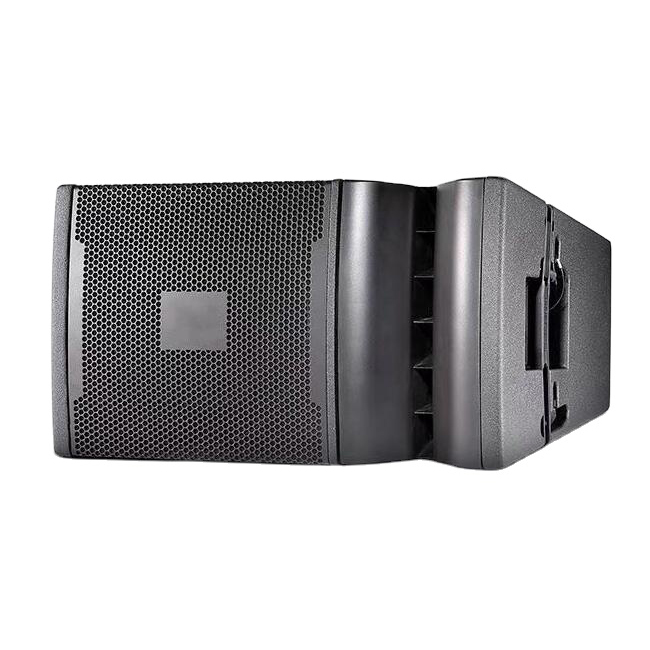

The LV-932 is a two-way line array speaker system that can be used in arrays of up to six speaker combinations.
Three neodymium high-frequency drivers and one high-power low-frequency driver mounted on a constant curved waveguide design horn,Its design allows multiple speakers to be arranged uninterrupted in vertical coverage.So the array behaves roughly the same as a single speaker.
Array coverage can be adjusted with the array configuration pendant,This feature provides amplitude shading when the system is used in passive mode.
In order to facilitate the on-site use of customers, one-piece hoisting hardware can be selected.
Double angle pole jacks and array frame accessories to meet the user’s various installation and suspension needs.

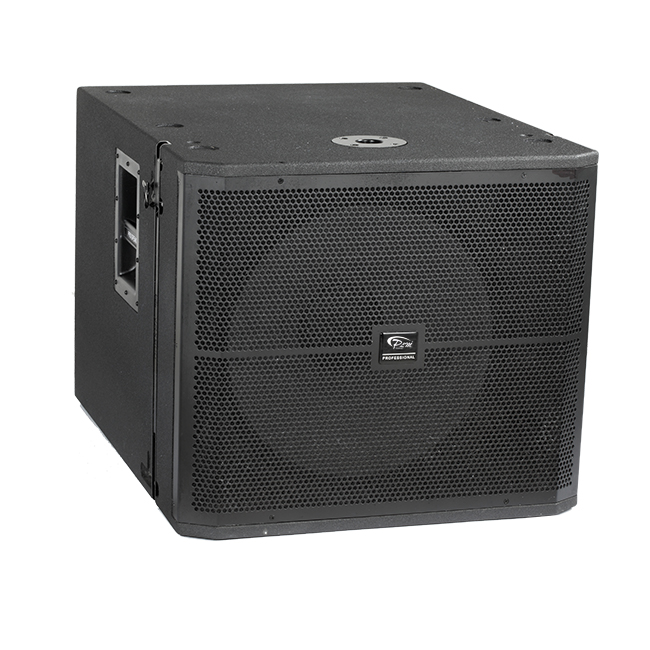

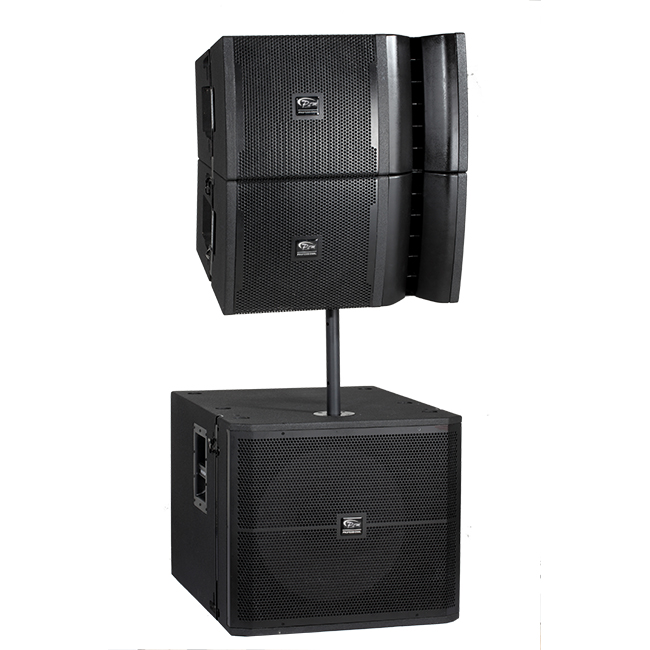

LV-932 full-range speaker is used with LV-918 ultra-low frequency,
To make the sound effect better, the hanging accessories that come with the speaker can be used in perfect combination.
- medium and large-scale mobile performances
- Concerts
- Live show
- Auditoriums
- concert halls
- fixed installations
